Anatomy of Test Driven Development – Part 2

This is the concluding blog of 2 part series on ‘Anatomy of Test Driven Development’. Continuing from where we left in first part of this series, this will mainly talk about ‘How’ aspects of TDD along with its avatars.

How to do TDD

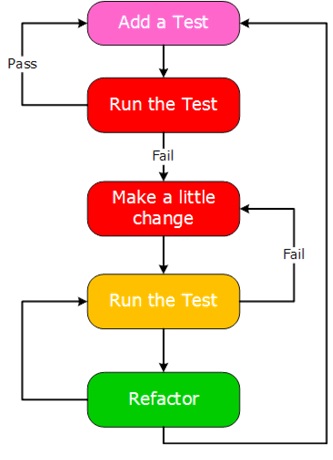

We start with a Test. To get this to work we need to frame the test. We need to make sure that there is enough code in place to make it compile or to make it to work and not throw up run time error. Thereafter when we run the test it will fail; when it fails what is expected is to quickly write some code and make some change to the application for making the test pass. Primary focus is to get test pass as quickly as possible. We certainly do not intend to damage and hack the existing system. Now that test passes successfully, REFACTORING needs to be done for making the implementation look more elegant and clean. Since we have test cases as a part of TDD, we have enough safety nets to do refactoring and validate its impact w.r.t functionality. This cycle of doing refactoring and running the tests should be performed till 4 rules of Simple Design (outlined by Kent Beck) are met in the below mentioned priority order

  1. All the tests pass – all test should pass. Not just the test you wrote but all the test that existed before your implementation should pass.
  2. There is no code smell – like duplication, speculative generality, primitive obsession etc.
  3. The code expresses the intent of the programmer – it should not look as if a cat came and just walked over your keyboard. It has to make some logical sense as it will be referred and used by your fellow team members
  4. Classes, and methods are minimalist– you want to be as minimalist as possible without compromising on communication and quality of design

Before we actually delve into HOW part of TDD, first lets understand avatars of Test Driven Development –

  1. London School of TDD / Mockist Approach
  2. Chicago School of TDD / Classicist Approach

London School of TDD / Mockist approach

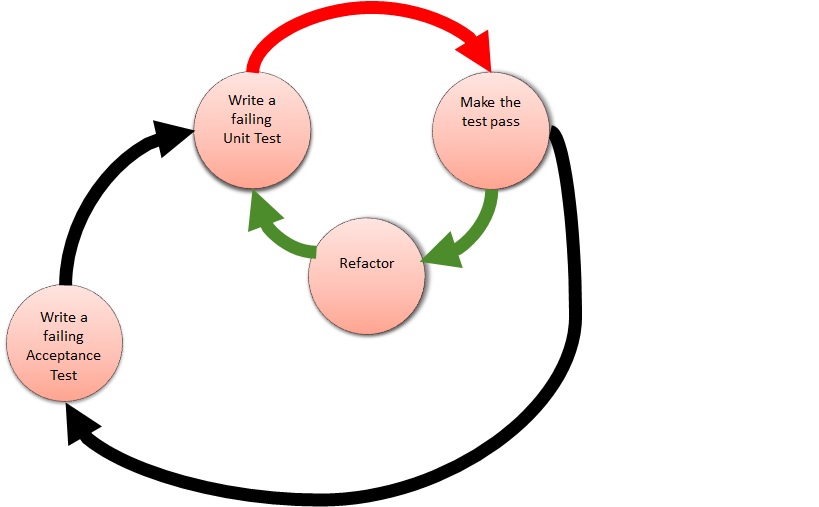

For Mockist approach, the golden rule tells us that we need to start with a failing test. When we’re implementing a feature, we generally start by writing an acceptance test, which exercises the functionality we want to build. While it’s failing, an acceptance test demonstrates that the system does not yet implement that feature; when it passes, we’re done. When working on a feature, we use acceptance test to guide us as to whether we really need the code we’re about to write; as with this approach we only write code that’s relevant to the underlying functionality. Underneath the acceptance test, we basically follow the unit level test/implement/refactor cycle (as discussed earlier) to develop the feature.

If we notice characteristic of this school of TDD, we will realize that outer test loop i.e. Acceptance Tests is a measure of demonstrable progress, and the growing suite of unit tests underneath it, not only helps in driving/validating design but it also protects us against regression failures when we change the system.


Lets understand this approach with a semi realistic example – lets say we are implementing an e-commerce application for which price of shopping basket need to be calculated.

So adopting Mockist approach for TDD, we start with an acceptance test which will fail initially as implementation is missing. In order to make this test pass, we create a suite of unit test for the given functionality i.e. calculating price of shopping basket

So we will test the target object and whilst implementing target object via Mockist approach we would also come to know about its neighbors (also known as collaborators) and what should be their role within the purview of test case being executed. So in a way test is helping us to carve out supporting roles of target object and they are defined as Java interfaces. We call this process as ‘interface discovery

Most important aspect of Mockist style of TDD is those collaborators don’t need to exist when we’re writing a unit test; sounds quiet surprising !

Real implementations of collaborators will evolve with its own tests as we develop the rest of the system.

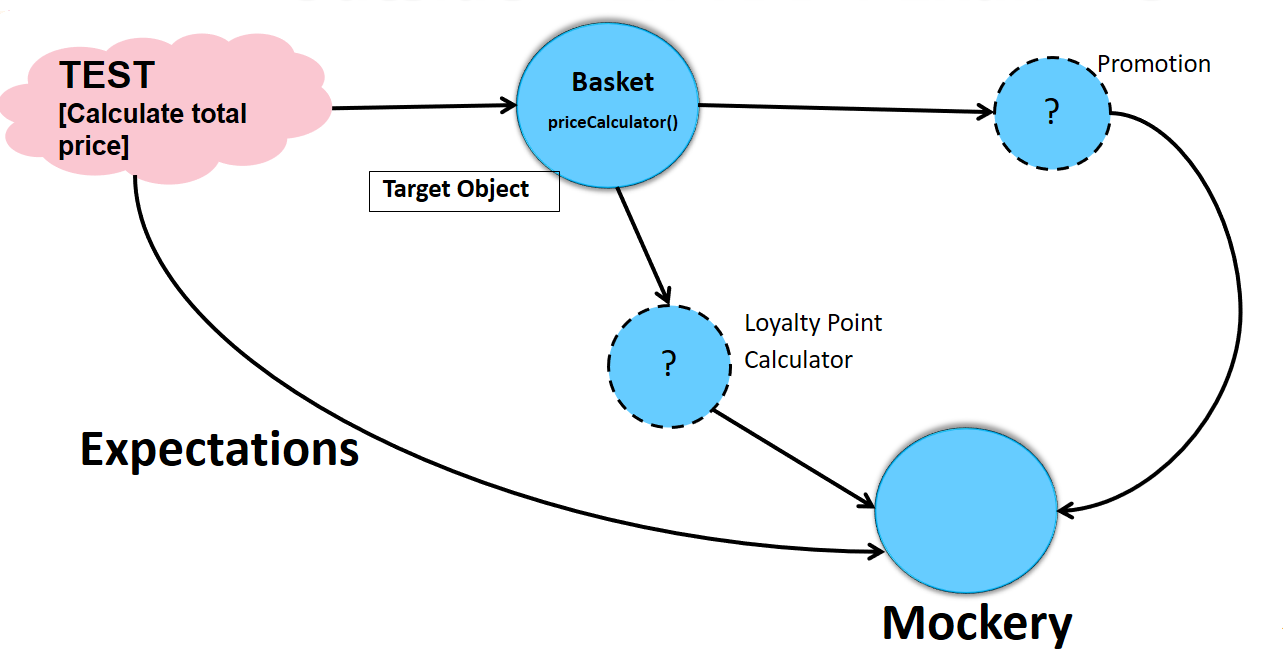

Hence, we will need to create mock instances of the discovered collaborators, define expectations on how they’re called and then check them, and implement any stub behavior we need to get through the test. In practice, the runtime structure of a test with mock objects usually looks like.

Underlying principle is –

Every class will have its own test and Test will be responsible for testing only 1 target object i.e. CUT and none of the classes/collaborators target object/CUT depends on. Each of those collaborators will have their own test. With above approach test case for the given target object would look like –

Promotion aMockPromotion = Mockito.mock(Promotion.class);

// Apply promotion of 1 Rs. discount on purchased video
     subtract(new BigDecimal("1.00")));

// Do not apply promotion purchased book

The London school of TDD has a different emphasis, focusing on roles, responsibilities and interactions, as opposed to algorithms.

An important offshoot emerged from this mockist style of doing TDD and is known as Behavior Driven Development (BDD). BDD was originally developed by Dan North as a technique to better help people learn Outside-In TDD by focusing on how TDD operates as a design technique.

Chicago School of TDD / Classicist approach

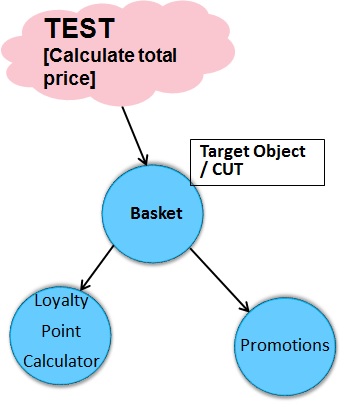

In this approach a test may be written for target object i.e. Shopping Cart object and test assumes that all its collaborators are having right value/state and are properly wired with Shopping Cart. Hence this test will test the Shopping Cart with all its actual dependencies.
inside-out-tddWith this approach, we generally work in a low granularity, meaning every graph of classes has its own test fixture. As a result, each test fixture covers a graph of classes implicitly by testing the graph’s root.



Usually one might not require to test the inner classes of the graph explicitly since they are already tested implicitly by the tests of their root class, and thus one can avoid coverage duplication.


After understanding ‘how’ aspects of Test Driven Development along with its Avataars we can say that there is a deep synergy between good design and testability. And so is the case with feedback and testability. Hence all of the three are inextricably linked !


4 thoughts on “Anatomy of Test Driven Development – Part 2

  1. Nice and useful blog.
    My impression about TDD was about translating specifications into test cases.
    But it is very difficult. Test cases are normally written once the objects in the
    system are identified. So, a object level design is the pre-requisite before we
    start with writing the test cases. Can we write test cases without identifying
    the objects required in the system? or is TDD about first identifying the objects
    required for testing the system being developed.
    TDD starts after the object design is over, and then translates the object design
    into test cases.

    1. Thanks Pravin Sir.
      As per my experience and various readings, TDD is mainly meant for –
      1. Emitting specification of the underlying functionality
      2. Assisting in validating the design of the underlying functionality
      With Mockist approach even object level design might not be a mandatory pre-requisite as the collaborators of Class Under Test (i.e. CUT) will be discovered via ‘interface discovery’ approach – For the above example, since promotion and loyalty point deductions need to be applied before calculating total price; Promotion and LoyaltyPointCalcuator wont exist as a class, instead they will be defined as an interface with only contract required by CUT. And by following Mockist approach, it will help me to ensure that CUT is not violating any of the design principles (i.e. SOLID, DRY, KISS, YAGNI etc.)
      Most important characteristic of this style of TDD is – discovered collaborators does not exists in its actual form (i.e. as a class).
      Having said that, one can still do object level design to avoid significant refactoring but test written as a part of TDD will always question the design decisions by giving different indicators in the form of Test Smells (

  2. I think even before testing out units if TDD starts with a failing test against the entry/periphery of the system (can be called a first failing end-to-end test)(out-in-out), then this first failing one will start a chain of defining the unit ones.
    So the only pre requisite I can think of is a broad brush system view and the use-case of course which defines what is to be achieved by the system..

    1. I agree, and hence would align with GOOS terminlogy – Start with failing End to End test for a given use case, which will gradually lead to creation of set of unit test cases underneath it which will in turn create and evolve the design of the functionality being implemented
